Products > IP68 LED MODULE > HIGHPOWER PHILIPS LUMILEDS LUXEON TX

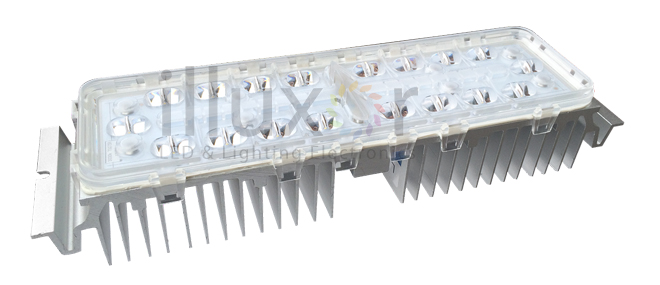

illuxor LED IP68 Module PHILIPS Lumileds Luxeon Rebel ES

CE & RoHS



Double IP68 High Efficiency LED Modules
MODEL LED
QTY
COLOR (K) Drive Current Lumen
(lm)
DIMENSIONS
L W H
IL-MOD-X 18 2700- 6000 700mA to 1050mA 110 - 130 275 75 45





Product Details

  • Lighting Source: PHILIPS Lumileds Luxeon TX, PHILIPS Lumileds Luxeon 3030
  • Input voltage: AC 100-277 V
  • Light Distribution Curve: 25, 40, 60, 90, Bat Wing, Iso Brightness
  • Peak lighting Angle: 120 degree
  • Color Temperature: 3000K, 4000K, 5000K, 5700K
  • CRI: Minimum 70
  • Working environment:-40ºC to 50ºC; 10% -90%RH
  • Life Span: 50,000 hours
  • Warranty: 2 years replacement
  • Body and shell materials: Aluminum alloy
  • Protection Grade: LED Driver: IP67; LED Module: IP68
  • Surge Voltage: 10kV
  • Installation size: Φ60mm



Features

  • PHILIPS Lumileds LEDs, flip chip technology, single unit's demage won't affect others working;
  • Honeycomb briquette effect heat dissipation princible, best thermal management system;
  • Designed to last at least 60.000 hours at L70;
  • Multiple lighting distributions available;
  • IP68 modules: highest waterproof level, hot-pluggable, easy for installation and replacement;
    Aluminum housing; Multiple housing colors: black, white, grey, blue;
    Easy tool onsite maintenance and repair;
    5-year limited warranty;
